PRODUCT DESCRIPTION
Rated temperature: 125℃
Rated voltage: 1500V DC
Reference standard: 2 Pfg 2693
Conductor: stranded tinned copper
Insulation: XLPO
The vertical flame combustion test complies with EN60332-1-2
APPLICATION

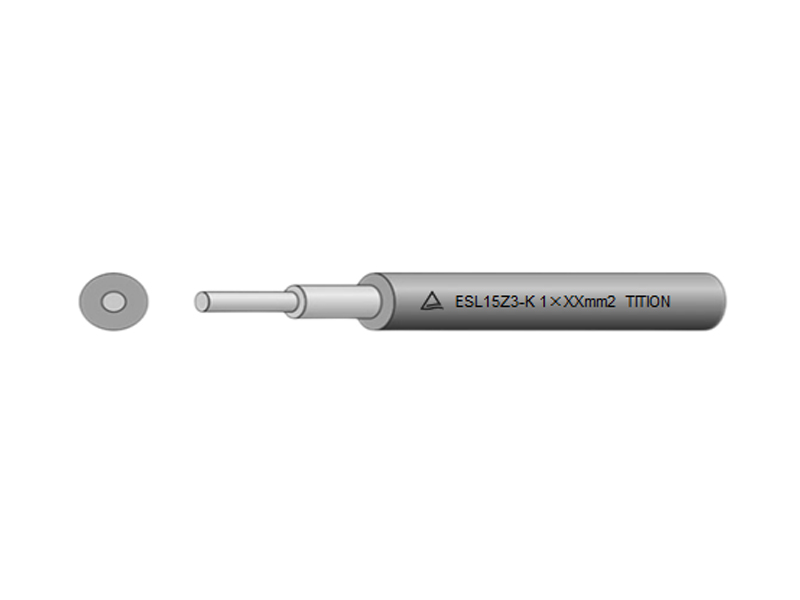

Battery storage system connection cable
Parameter
| Conductor | Insulation | Sheath | Average 参考外径 mm | Maximun Resistance at 20℃ 最大导体电阻MΩ/km | |||
| 导体 | 绝缘 | 护套 | |||||
| mm² | No./mm | Nom.Dia. | Mean.Thick. | Mean.Thick. | |||
| 线规 | 线数/线径 | 外径 | 平均厚度 | 平均厚度 | |||
| mm | mm | mm | |||||
| 4 | 56/0.30 | 2.59 | 0.80 | / | 4.40 | 4.95 | |
| 6 | 84/0.30 | 3.18 | 0.80 | / | 5.10 | 3.30 | |
| 10 | 80/0.40 | 4.13 | 1.00 | / | 6.70 | 1.91 | |
| 16 | 126/0.40 | 5.19 | 1.10 | / | 8.10 | 1.21 | |
| 25 | 196/0.40 | 6.65 | 1.30 | / | 9.80 | 0.780 | |
| 35 | 276/0.40 | 7.96 | 1.30 | / | 11.20 | 0.554 | |
| 50 | 396/0.40 | 9.28 | 1.50 | / | 13.00 | 0.386 | |
| 70 | 557/0.40 | 11.15 | 1.50 | / | 14.80 | 0.272 | |
| 95 | 757/0.40 | 12.93 | 1.50 | / | 17.30 | 0.206 | |
| 120 | 969/0.40 | 14.62 | 1.50 | / | 19.00 | 0.161 | |
| 150 | 1197/0.40 | 16.50 | 1.70 | / | 21.50 | 0.129 | |
| 185 | 1473/0.40 | 18.27 | 1.90 | / | 23.20 | 0.106 | |
| 240 | 1919/0.40 | 20.89 | 2.00 | / | 26.30 | 0.0801 | |
