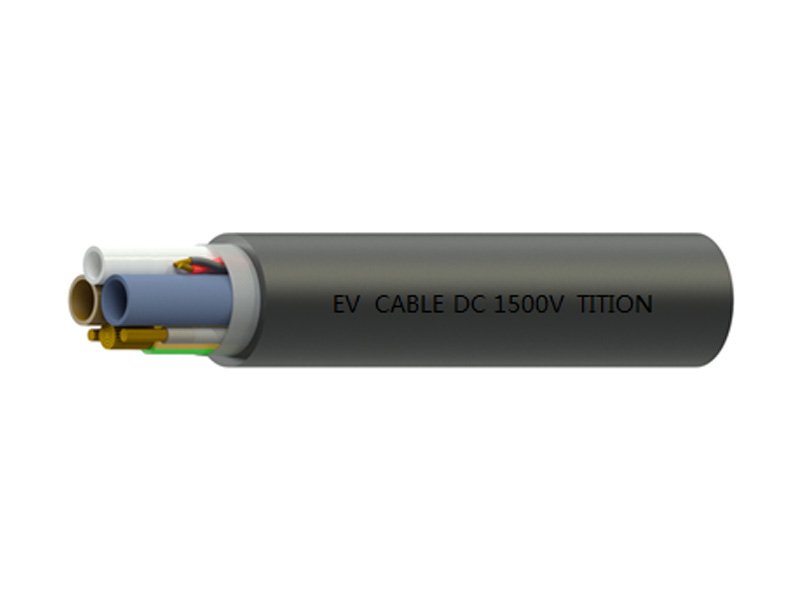

Liquid cooed charging cables for electric vehicles(DC)

上架时间:2025-08-15
浏览次数:0
产品详情

Product construction

Conductor:Bare copper

Insulation:XLPE,TPE

Filler:PP rope

Tape:Non-woven

Sheath:TPE,TPU


Features

Rating temperature:-40℃~90℃/105℃/125℃ ;

Rated voltage:DC 1500V;

Compatibility test: According to IEC 62893 or CQC 1147;

Weather/UV Resistance test: According to IEC 62893 or CQC 1147;

Impact test at -40℃: According to IEC 62893 or CQC 1147;

Crush test: According to IEC 62893 or CQC 1147;

Bengding test: According to IEC 62893 or CQC 1147;

scrape abrasion test: According to IEC 62893 or CQC 1147;

Flame test: According to IEC 60332-1-2;

Resistance against chemicals: According to IEC 62893 or CQC 1147;

Min.bending radius:10D;

Burst pressure of  5/8tube:35kg;

Silicone oil resistance(150℃,168h):The change of tensile strength and elongation is less than ±25%;

Environmental requirement:RoHS & REACH;

Reference standard:IEC 62893-4-2、CQC1147-2022、GB/T33594


Product parameters

Product classificationSpecification mm2Nom.Dia. mm  mΩ/m at.20℃Ref.A

Liquid cooed charging cables for electric vehicles(DC):

EVDC-EYS90-LCC(I),

EVDC-EYU-LCC(I),

EVDC-EYS90-LCC (Ⅳ),

EVDC-EYU-LCC(Ⅳ)

2×16+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)301.21400
2×25+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)32.00.78500
2×35+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)34.00.554600
2×50+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)36.00.386800
2×70+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)38.00.2721000
16×6+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)263.3400
16×8+PE+2×1.5~6+0.5~2.5(P/P2)(4~14芯)302.44600


Cable service environment

The warehous where cables are stored must not contain harmful gases that damage the insulation/sheath and corrode metals.During normal use,it is strictly fobidden to come into contact with acids,alkalis and mineral oils,and avoid using them in the open or exposed environment and under temperature conditions that do not meet the requirements of  the wire and cable standards.


Notes

The specifications,dimensions,and structure of the above products may be changed due to technological progress.Similar specifications can be designed and manufactured according to customer needs.
