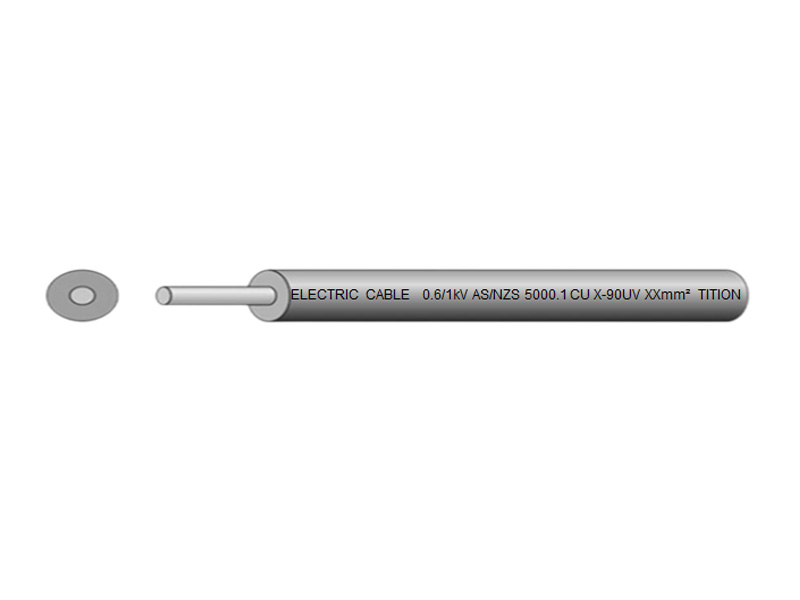

PRODUCT DESCRIPTION
Rated temperature ：90ºC
Rated voltage ：0.6/1kV
Reference standard：AS/NZS 5000.1
Conductor:Meets AS/NZS1125 standards for Class 1, 2 or 5 copper wires
Insulation:Insulated X-90UV according to AS/NZS 3808 standard
Meets AS/NZS 5000.1 flame retardant requirements
Environmental requirements: RoHS & REACH;
APPLICATION
Electric cables-Polymeric insulated For working voltages up to and including 0.6/1(1.2) kV
Product parameters
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | ||
| mm | mm | mm | ||||
| 2.50 | 50/0.25 | 2.04 | 0.70 | 3.60 | 7.980 | |
| 4.00 | 56/0.30 | 2.59 | 0.70 | 4.20 | 4.950 | |
| 6.00 | 84/0.30 | 3.18 | 0.70 | 4.80 | 3.300 | |
| 10.00 | 80/0.40 | 4.13 | 0.70 | 5.80 | 1.910 | |
| 16.00 | 126/0.40 | 5.19 | 0.70 | 6.80 | 1.210 | |
| 25.00 | 196/0.40 | 6.97 | 0.90 | 8.80 | 0.780 | |
| 35.00 | 276/0.40 | 8.41 | 0.90 | 10.30 | 0.554 | |
| 50.00 | 396/0.40 | 10.06 | 1.00 | 12.30 | 0.386 | |
| 70.00 | 557/0.40 | 11.51 | 1.10 | 14.00 | 0.272 | |
| 95.00 | 757/0.40 | 13.56 | 1.10 | 16.00 | 0.206 | |
| 120.00 | 969/0.40 | 15.34 | 1.20 | 18.00 | 0.161 | |
